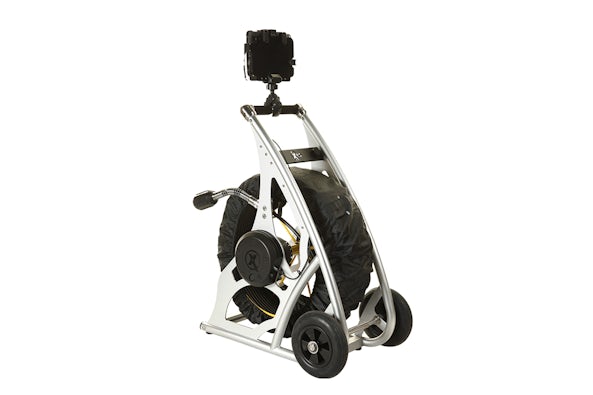

X60
SKU: 16088060044- Operating range up to 300 mm
- Cable length 60 m
- Camera head diameter 44 mm
The X60 pipeline inspection system is a revolutionary tool that sets new standards for pipeline inspection, capable of surveying pipelines up to 300mm.
| Cable length | 60 metres |
|---|---|
| Kabeldiameter | 12 mm |
| Weight | 12 kg |
| Dimensions (lxwxh) | 840mm x 441mm x 655mm |
| Camera head | 44 mm self-levelling camera head |
| Operating range | 50 to 300mm |
| Transmitter set | 33 kHz or 512 Hz |
| Meter counter | Yes |
| Verlichting | 350lux |
| Werktemperatuur | -10°C to +40°C |
| Battery | 6,52Ah |
| Batterijduur | 10 hours |
| Laadstroom | 1,5A |
| Nominale voltage | 7,4V |
| IP-klasse | IP56 (reel) IP68 (camera head) |
| Approval | CE and UKCA |
| Standard accessories | 44mm camera, hybrid camera-skid (60, 75 and 100mm), battery charger, tablet protective cover, tablet screen protector and tablet sun protector |
| 2024-X60-Datasheet | 2024-X60-Datasheet (PDF, 5.661 MB) |
|---|
About the X60
The X60 pipeline inspection system is a revolutionary tool that sets new standards for pipeline inspection, capable of surveying pipelines up to 300mm. Built with both essential and cutting-edge features, it combines traditional functionalities—such as on-screen meterage, camera traceability, self-leveling imaging, text overlays, documented findings, and on-site delivery—with advanced capabilities. These include PDF editing, clock position observations, extended battery life, and disc brakes for enhanced control and safety.
The X60 integrates seamlessly with popular platforms like Outlook, WhatsApp, and Dropbox, simplifying report sharing, while compatibility with the innovative WinCan ProTouch software ensures efficient, detailed reporting, including direct sharing to WinCan Web. The X60 comes with an 8’ screen, making it one of the most versatile and comprehensive inspection systems on the market. Embodying the pinnacle of inspection technology, this system delivers reliable, user-friendly and highly detailed inspection results.
